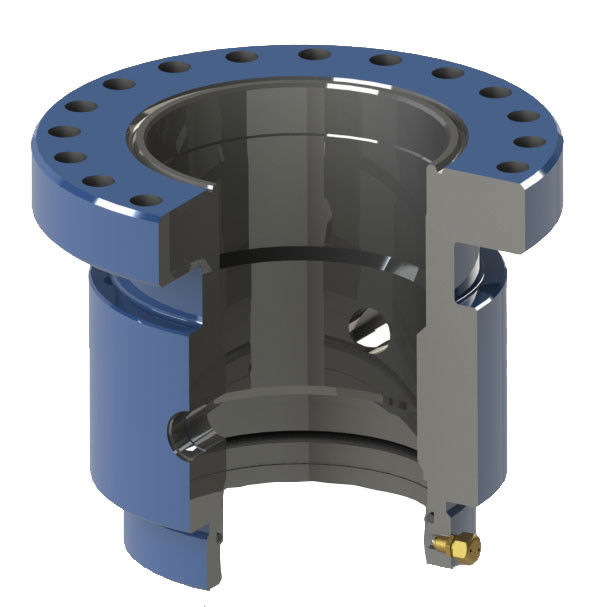

API 6A Wellhead 9 5/8" 10000 PSI Casing Head Assembly

API 6A Wellhead 9 5/8" 10000 PSI Casing Head Assembly
API 6A Wellhead 9 5/8" 10000 PSI Casing Head Assembly API 6A Wellhead 9 5/8" 10000 PSI Casing Head Assembly API 6A Wellhead 9 5/8" 10000 PSI Casing Head Assembly

Μεγάλες Εικόνας :  API 6A Wellhead 9 5/8" 10000 PSI Casing Head Assembly

Λεπτομέρειες:
Τόπος καταγωγής: Xi'an Κίνα
Μάρκα: TR Solids Control
Πιστοποίηση: API 6A, ISO 9001
Αριθμό μοντέλου: TRYGT
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 PC
Τιμή: διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Παλέτα ή ξύλινη περίπτωση
Χρόνος παράδοσης: 20 ημέρες
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union
Δυνατότητα προσφοράς: 80000 PC το μήνα
Λεπτομερής Περιγραφή Προϊόντος
Μέγεθος: 9» - 21 1/4» Πίεση εργασίας: 2000 ~20000psi
Χρώμα: Προσαρμοσμένος Συσκευασία: Ξύλινο κιβώτιο
Ποιότητα: Υψηλού επιπέδου Χρήση: Πετρελαιοφόρος περιοχή
Επισημαίνω:

10000 PSI Casing Head Assembly

,

9 5/8" Casing Head Assembly

,

API 6A Oilfield Casing Head

API 6A Wellhead Equipment 9 5/8" 10000 PSI Casing Head



Product Introduction



Casing heads are indispensable components used for connecting casing to wellhead assembly, which can support intermediate string and production string, seal the annular space between the casings. Casing head also can be used as a crossover connection for installation of BOP, tubing head, christmas tree and other wellhead components. Two side outlets on the casing head can be used for cement feeding, well sink monitoring, balance fluid injection and other operations.



We manufacture standard structural casing head with casing hanger installed in the body. Casing hanger can be chosen as per different casing program and well condictions.top flange of casing head can be API 6B or 6BX.



How to choose casing head?


The bottom connection of the casing head is either API round box thread and API buttress box thread; it can also be slip type connection.
It can be provided with weld supporting base plate..



Main Characterstics of Wellhead Casing Head



  1. Casing head house design is with 45* landing shoulder.
  2. Based on casing head's procedure design different models' casing hanger.
  3. Design,manufacture ,testing and material choosing are followed by API 6A standard.
  4. Casing head house 's side outflet connection has thread type and flanger type.
  5. Casing head and casing pipe's connection way has thread type ,welded type,and slip type.
  6. Same model mandrel type and slip type casing hanger can exchangeable.
  7. Sealing type of caing hanger has combined rubber sealing and combined metal sealing type.



Technical Specifications of TR Wellhead Casing Head



Casing Program 20"×133/8" ×95/8" ×7" or 51/2"
Flanged Outlet PFF35/80:R35
PFF70/65:BX153
Load Capacity Mixmum 5000KN
Hanger Specification 4",41/2",5",51/2",7"
Working Pressure 35MPa~70MPa
Performance Requirement Grade PR1
Product Specification Grade PSL1-3
Temperature P·U(-29~121)
Material Class AA~FF



API 6A Wellhead 9 5/8" 10000 PSI Casing Head Assembly 0



Xi'An TianRui Petroleum Machinery Equipment Company is committed to the research and advanced development of well control tools. The BOP designed and manufactured by the company is a necessary and iconic tool for mechanized wellhead operations. In recent years, a batch of automated well control tools represented by blowout preventers have created a new era of wellhead drilling rigs. The company is a professional company with the longest history, complete variety and most powerful development and research of wellhead tools and equipment. At present, the company has formed more than 50 series and more than 100 specifications of products, which have been widely used in all oil fields in China and have been exported to Europe, America, Southeast Asia, the Middle East, Central Asia, and the North. Africa and other regions.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
