5000 Psi Oilfield Wellhead Integrated Casing Head

Drill Rig Oilfield Wellhead Integrated Tubing and Casing Head

Product Descrption

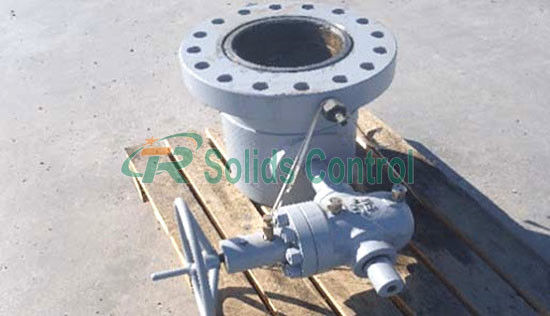

Casing head is a simple metal flange welded or screwed onto the top of the conductor pipe (also known as drive-pipe) or the casing and forms part of the wellhead system for the well. This is the primary interface for the surface pressure control equipment, for example blowout preventers (for well drilling) or the Christmas tree (for well production).

Casing Head provided by us can used for single completions and model of dual completions. Casing head and casing spool use standard design, and can apply to all kinds of JMP slip and mandrel type casing hanger.

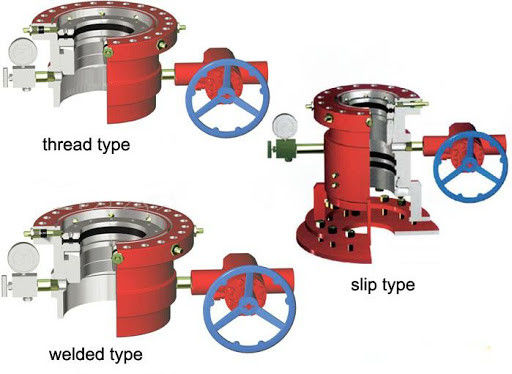

Bottom connection can be CSG,BTC,SOW or slip-lock. We can also provide landing plate as per request.side outlets can be threaded or studded.

Product Details

• Accepts a full line of single completion tubing hangers.
• Providing a 45°landing shoulder capable of supporting maximum loads.
• Providing a sealing bore for hanger and packing.
• Providing secondary sealing for previous casing top.
• Providing a support and testing BOP after well completion.

Product Application

• Our Casing Head can be used in onshore and offshore environments, for general and sour service and in conventional or specialty wellhead systems.
• PR-1 certified
• PSL 1 to 3G certified
• Available with or without lockscrews
• Available in DD-NL, EE-NL, FF-NL and HH-NL trims
• Available in nominal flange sizes 11″ to 13-5/8″
• Optional landing base plate assemble for 20″ to 30″ conductor pipe

Technical Parameters of TR Wellhead Casing Head

Xi'an TianRui Petroleum Machinery Equipment Company Limited is a professional manufacturer of various oilfield equipments and cementing accessories since 2010, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.

We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
