Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
|
| Μέγεθος: | 3 3/4 «(95.3mm) ~26» (660.4mm) | Τύπος επεξεργασίας: | Σφυρηλατημένο κομμάτι |
|---|---|---|---|
| υλικό: | χάλυβας άνθρακα | Καλά τύπος: | Πλαίσια καλά |
| Πίεση: | 2000-20000 PSI | εφαρμογή: | Καλά τρυπώντας με τρυπάνι |
| Επισημαίνω: | Oilfield Slip Type Casing Hanger,138MPa Slip Type Casing Hanger,3/8" Wellhead Casing Hanger |
||

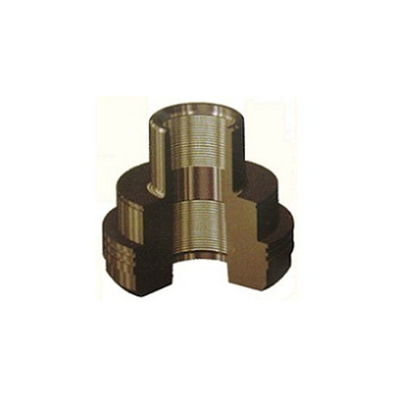

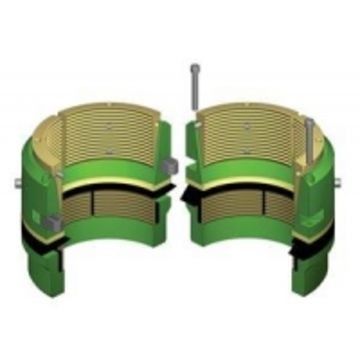

Oilfield Equipment Slips Type Casing Hanger and Tubing Hanger
Product Descrption
The casing hanger is placed in the cone seat of the lowest part of casing head or intermediate casing head to hang the following smaller casing string and make a seal for the hanging casing and casing head cone seat. It should be able to withstand the weight of the casing hanging. Therefore, the tensile load, the weight load from the pressure in the well casing, and radial load of the conical shoulder are the main loads of the hanger.
The most common size of casing hanger is 13-3/8" with over 155,000 such units installed worldwide in 2014 alone.
The contraction of the oilfield industry throughout 2015 meant that this figure was reduced somewhat to just under 120,000 units, of which 36,822 were "Pos-Grip" casing hangers.
Main Benefits of Our Wellhead Casing Hanger
Technical Specifications of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
Why choose us?
1. Good manufacturer and supplier on the website, is a credit company.
2. Advanced technology, high quality products and reasonable price!
3. Good service, the customization and trial order are both accepted.
4. A talent and experienced team.
We Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city of China. We have specialized technicians, senior engineers and professional marketing team. We have been serving oilfield from past 10 years, and established a solid partnership and network with quality OEM factories.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
