H2S Resistant PSL3G API 6A Oilfield Tubing Head Adapter

Επαγγελματικός κατασκευαστής ελέγχου στερεών. Οι οθόνες δονητών αντικατάστασης προϊόντων τους έχουν το μακροχρόνιο χρόνο υπηρεσιών και την καλή επεξεργασία. Μας βοηθούν πολύς!

—— Ο κ. Samir

Αγόρασα τη φυγοκεντρική αντλία 10 PC TRSB8*6-12J από τον έλεγχο στερεών TR. Είναι όμορφοι και έχουν πραγματικά την καλή ποιότητα και διακριτικός μετά από την υπηρεσία πωλήσεων!

—— Ο κ. Warren

Διατάξαμε ένα σύνολο συστήματος λάσπης για τον τρυπώντας με τρυπάνι τομέα πετρελαιοφόρων περιοχών μας, παρουσιασμένη προϊόν καλή απόδοση TR στην περιοχή. Συμπαθούμε αυτός πάρα πολύ!

—— Diego Olbrich

Οι οθόνες δονητών TR έχουν τη κορυφαία ποιότητα και την καλή τιμή. Τους έχουμε αγοράσει από το TR για περισσότερο από 4 έτη.

—— Nghiem Thic Hai

Καλή επιχείρηση με τη συμπαθητική υπηρεσία και υψηλός - ποιότητα και υψηλή φήμη. Ένας από τον αξιόπιστο προμηθευτή μας, αγαθά είναι παραδοθείσα έγκαιρη και συμπαθητική συσκευασία.

—— Hossein Jafari

Ευχαριστώ για τα καλά σας εξυπηρέτηση μετά την πώληση. Άριστη κατάρτιση και τεχνολογική στήριξη που με βοηθάει πολύ.

—— Κα Crina

Αρχίζουμε το δονητή σχιστόλιθου χρήσης TRZS703 από το 2012, τώρα έχουμε 8 σύνολα εργαζόμενος στην περιοχή πετρελαιοφόρων περιοχών του πελάτη μας, τέλεια μηχανή με τη λογική τιμή.

—— Α.Ε. Kazi

Είμαι Online Chat Now

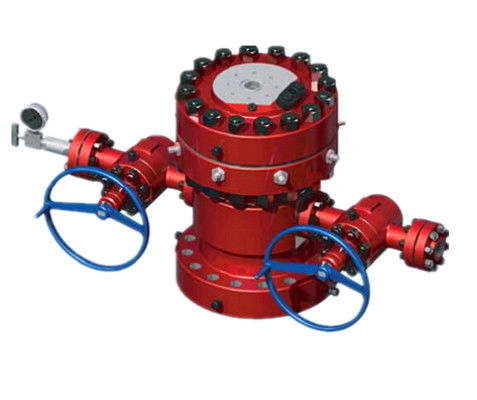

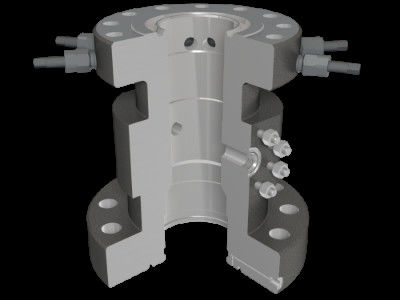

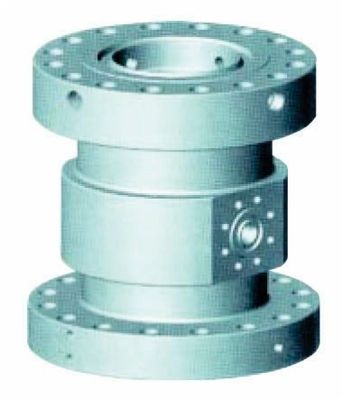

H2S Resistant PSL3G API 6A Oilfield Tubing Head Adapter

H2S Resistant PSL3G API 6A Oilfield Tubing Head Adapter
H2S Resistant PSL3G API 6A Oilfield Tubing Head Adapter H2S Resistant PSL3G API 6A Oilfield Tubing Head Adapter H2S Resistant PSL3G API 6A Oilfield Tubing Head Adapter

Μεγάλες Εικόνας :  H2S Resistant PSL3G API 6A Oilfield Tubing Head Adapter

Λεπτομέρειες:
Τόπος καταγωγής: Xi'an Κίνα
Μάρκα: TR Solids Control
Πιστοποίηση: API 6A, ISO9001
Αριθμό μοντέλου: TRYGT
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 PC
Τιμή: διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Παλέτα ή ξύλινη περίπτωση
Χρόνος παράδοσης: 20 ημέρες
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union
Δυνατότητα προσφοράς: 70000 PC το μήνα
Λεπτομερής Περιγραφή Προϊόντος
Μέγεθος: 3 3/4 «~26» Τύπος σύνδεσης: Φλάντζα/σφιγκτήρας/νήμα
Τύπος επεξεργασίας: Σφυρηλατημένο κομμάτι Χρήση: Καλά τρυπώντας με τρυπάνι
Μέσο: Λάσπη, νερό, φυσικό αέριο, αργό πετρέλαιο Συσκευασία: Ξύλινη περίπτωση
Επισημαίνω:

Oilfield Tubing Head Adapter

,

API 6A Tubing Head Adapter

,

PSL3G Oilfield Tubing Adapter

API 6A Oilfield Wellhead Tubing Head / Tubing Head Adapter



Product Introduction



Tubing head (n.) – Equipment attached to the casing spool used to hang the tubing (smallest casing string) and seal the annulus between the tubing and casing.



Tubing head adapter (n.) - Equipment used to adapt the uppermost connection of the tubing head to the lowermost section of the tree.



Providing a transition from the wellhead to the tree, the tubing head adapter is used for both single and multiple completions. FMC's standard tubing head adapter product line consists of nine models, each designed to work with a set group of tubing heads and hangers. With threaded, flanged, or studded-top connections, most adapters can be machined with a hydraulic supply inlet for downhole control lines.



Main Benefits of TR Wellhead Tubing Head



  1. All stell tanks are welded with staintess stell for long-term anti-corrosion.
  2. Made from high-strengh alloy and processed specially with heating treatment.
  3. Designed and manufactured with reference to API 6A technical specifications.
  4. Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.
  5. Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
  6. Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR 0175 technical specifications.



Technical Specifications of TR Wellhead Tubing Head



Item Describetion
WP 2000Psi – 20000Psi
M/C AA,BB,CC,DD,EE,FF,HH
T/C -60-390 (-75-734℉)
PSL PSL1, PSL2, PSL3, PSL3G, PSL4
PR PR1, PR2
Medium Oil, Gas, Mud



H2S Resistant PSL3G API 6A Oilfield Tubing Head Adapter 0



Xi'an TianRui Petroleum Machinery Equipment Company provides many kinds of wellhead equipment, down hole tools ,fishing tools and drilling tools,such as fishing spear ,Rotary Kelly,Drill pipe,casing head, tubing head, x-mas tree and some parts. We can provide API standard products. We not only have standard design wellhead products, but also provide products according to customer's requirements.



We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.



We have more than 10 years history in designing and manufacturing wellhead and christmas tree. The technology is in a leading position in China. We gained PR2 certificates for gate valve, choke valve and tubing head. Annual production is 5000 sets. Products have been exported to America, Saudi Arabia, India, Russia, Oman, Turkmenistan, Kazakhstan, Venezuela, etc.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
